This is a high quality "BTF Lighting" brand LED Strip, featuring 5 in 1 LEDs. Each LED has a red, green, blue and warm white and cool white LED. It it normally called RGBCCT, or RGB+Warm White+Cool White.
It features the ultimate 5 in 1 LEDs, enabling any colour, and any cool to warm white shade. Each LED has a red, green, blue, cool white and warm while LED. This enables it to produce cool and warm white light in the range 2700K-6500K. This is not possible with standard RGB(3 in 1) or RGBW(4 in 1) LED light strips.
It is 5m long, and has 300 LEDs(60 per meter). It is rated at IP65. The front of the strip is covered in silicone, and the back has an adhesive strip.
The LEDs are not individually addressable. All LEDs will have the same colour.
Pure white instead of mixed white light (red + blue + green) is more energy efficient, consumes less power, and generates less heat.

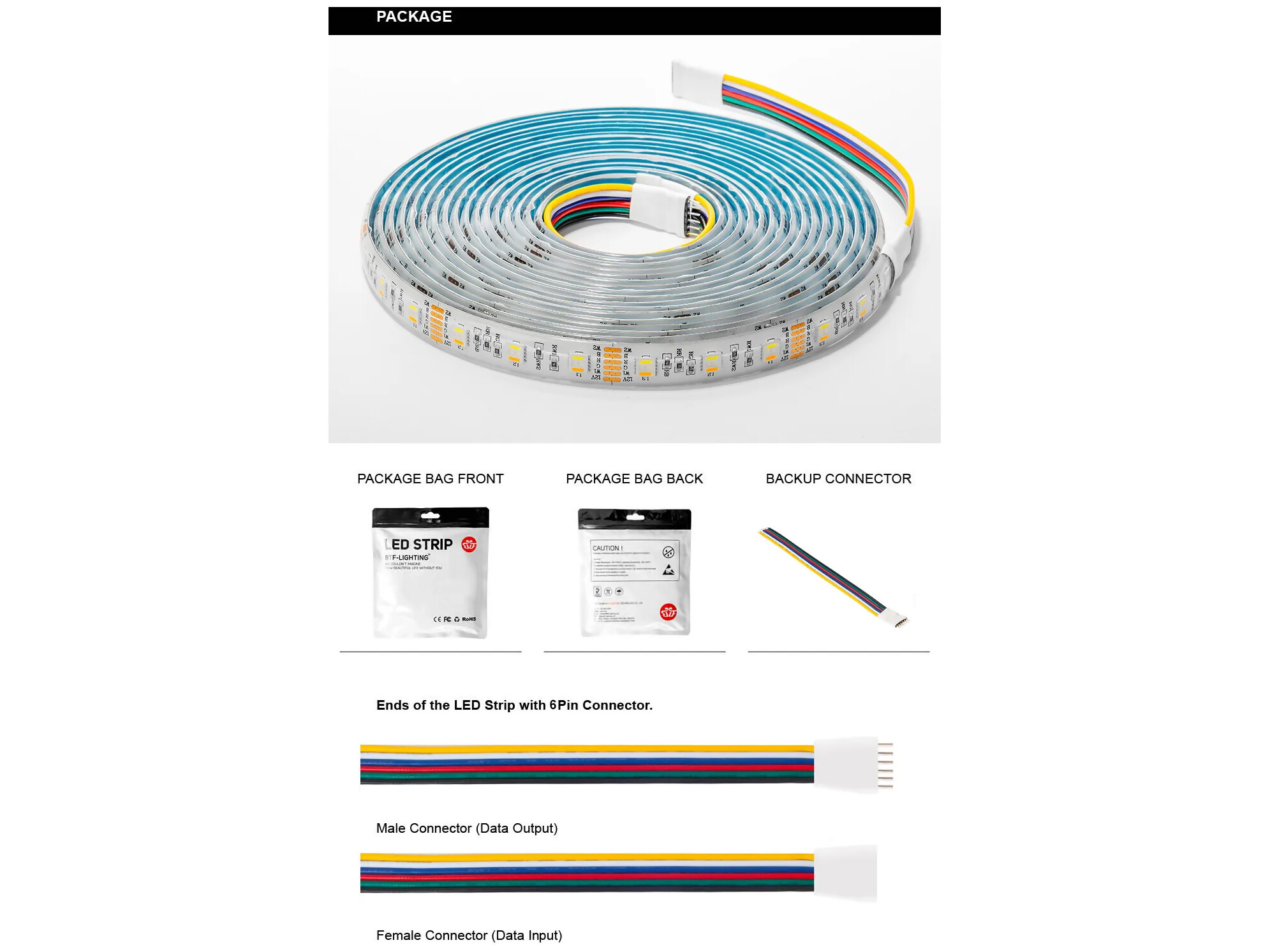

The strip can be cut every 3 LEDs, to get the right length. It has a 6 pin connectors on two ends, one male and one female. This enables LED strips to be connected in series. If using in series, ensure the power supply can supply enough power.
The LED strip is made using 50cm lengths of FPCB, so there is a solder point each 50cm on strip. In fact, nearly all the LED strips on the market are manufactured this way, in half-meter lengths.
This LED strip has to be used with a 12V LED Strip controller with 5 output channels(red, green, blue, cool white and warm white). This is sometimes called RGBCCT or RGBWW. When using with a smart RGBCCT Controller, you can voice control the lights using Amazon Alexa, Google Home or IFTTT. NOTE a controller is NOT INCLUDED. Some compatible controllers are:
- The WiFi B08L9GWJK1 controller, a WiFi LED Controller Compatible with Alexa, Google Home, Smart Life APP and Tuya Smart APP
- The Zigebee 3.0 B09NSK9ZBK controller
- The Bluetooth Mesh B09NQ15B5K controller
DC12V+ ---------------- Black wire
Warm white light ----- Yellow wire
Green light -------------- Green wire
Red light ---------------- Red wire
Blue light --------------- Blue wire
Cool white light ------- White wire
- ONLY power with 12V DC. A higher voltage will DESTROY the LEDs!
- The LED strip comes without a power supply and controller
- Ensure the power supply can provide sufficient power(Amp). Else the voltage will drop below 12V, and the LED strip will not work correctly.
- LED Type: 5050 RGBCCT LED
- LED Colours: 5 in 1 LED - Red, Green, Blue, Cool White, Warm White
- Cool White Colour: 6500K
- Warm White Colour: 2700K
- White Colour Range: Warm white and cool white LED combination can produce 2700K-6500K white light
- Wave length(nm): Red=620-625nm Green=520-525nm Blue=465-470nm
- Luminous flux: Red 1.0-2.0 lumens Green: 3.0-4.0 lumens Blue: 1.0-2.0 lumens White: 5.0-6.0 lumens
- IP Rating: IP65 - Silicone Coating Splash Proof, Dust prevention splash proof designs. Only use indoor.
- Control Chip: No Chip
- PCB Colour: White

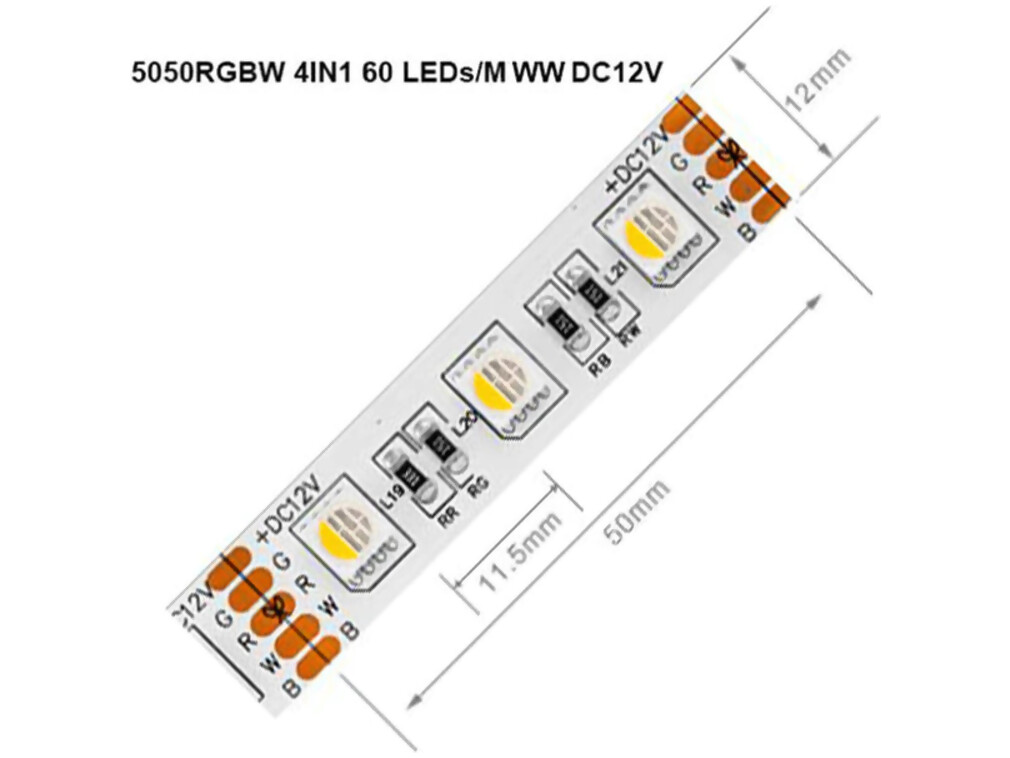

- PCB Width: 12mm
- Recommend power supply: DC12V10A 120W
- Power per LED: 0.1W~0.5W
- Power per meter: 6W~30W
- Total power for 5m strip: 30W~150W
- Storage Temperature: -40-+60 °C
- Operating Temperature: -25 ~ +60°C
- Manufacturer Part Number: RGBWW55M505060LW65 (RGBWWW55M505060LW65)
- Manufacturer SKU: 101915
- Connector Type: 5 Pin Male and Female 2.54mm header
1 x LED Strip
1 x Cables
